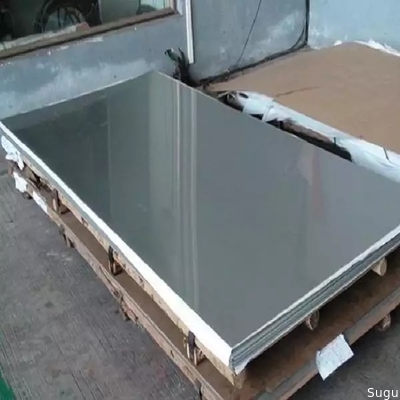

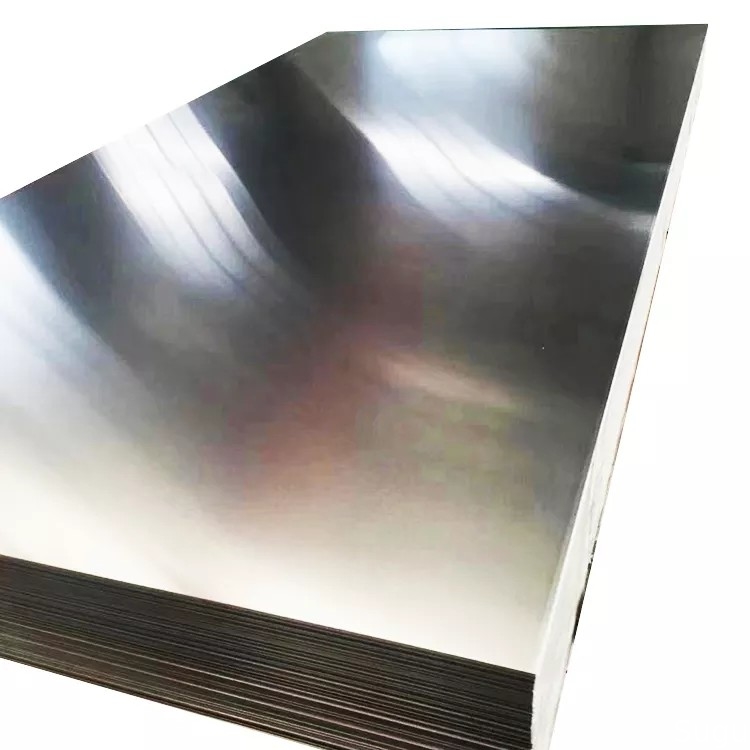

3003 5052 6061 7075 Aluminum Plate Aluminum Sheet 1 buyer
 |
Product Details:
| Place of Origin: | china |
| Brand Name: | oem |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200kg |
|---|---|
| Payment Terms: | T/T |
| Supply Ability: | 5000 Ton/Tons per Month aluminum sheet |
Detailed Product Description
Overview
Aluminum sheet specifications:
1) Alloy : 1050 1060 1070 1100 2024 3003 3004 3105 3A21 5005 5052 5083 5754 5182 5454 5456 6061 6063 7075 8011 etc
2) Temper: O/H12/H14/H1/H18/H32/H34/H36/H38//H111/H112/H116/H321/T6/T651/T3/T351 etc
3) Thickness: 0.1mm to 300mm
4) Width:20mm to 3300mm
5)Length: ≤ 12000mm
6) Protective film can be added
7) Production Line: DC and CC production line
| Alloy | Application field | |
| 1xxx | 1050 | Insulation, food industry, decoration, lamp, traffic signs etc. |
| 1060 | Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts etc | |
| 1070 | Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc | |
| 1100 | Cooker, building material, printing, heat exchanger, bottle cap etc | |
| 2xxx | 2A12 2024 | Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts, car parts and various other structural parts. |
| 3xxx | 3003 3004 3005 3105 |
Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc |
| 5xxx | 5052 | Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device, equipment and medical device panel etc. |
| 5005 | Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel. | |
| 5086 | Ship board, deck, bottom and edge panel etc. | |
| 5083 | Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board, automotive and aircraft panel, cooling device and automotive molding etc. | |
| 5182 | ||
| 5454 | ||
| 5754 | Tanker body, marine facilities, pressure container, transportation etc. | |
| 6xxx | 6061 6083 6082 |
Railway inside and outside parts, board and bed plate. Industry molding Highly stressed applications includes Roofing construction, transportation, and marine as well as mould. |
| 6063 | Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products. | |
| 7xxx | 7005 | Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers |
| 7050 | Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment | |
| 7075 | Aerospace industry, military industry, electronic etc | |
1060 aluminum sheet contains 99.6% Al, which is also called pure aluminum sheet. Because the production process of 1060 aluminum sheet is relatively single, the technology is relatively mature, and the market price is very advantageous. It is often used in the industrial manufacture of large storage tanks. So, It’s also a commonly used industrial pure aluminum in the aluminum sheet family. Of course,1060 aluminum sheet has the characteristics of excellent electrical conductivity, thermal conductivity, plasticity, and extensibility of pure aluminum, but its own strength is low, it cannot be strengthened by heat treatment, and machinability is not good. Therefore,1060 aluminum sheet is also used in products with low requirements for strength. Such as face mask nose wire, billboards, nameplates, building exterior decoration, kitchen sinks, lamp holders, fan leaves, electronic parts, clock and disk surfaces, reflective appliances, etc.
Usage of 1060 Aluminum Sheet
Hot-rolled 1060 aluminum sheet uses: Face mask nose wire, soft battery connection, bus interior, auto parts, aluminum-plastic panel, signage, lamps, wide curtain wall, bus luggage rack / floor / pattern board, etc.
Hot rolled medium-thickness 1060 aluminum sheet uses: Aluminum bus bar, car radiator, new energy car charging pile, mold, etc.
Hot-rolled 1060-O aluminum sheet uses: Face mask nose wire, automobile heat shield, electronic tag, soft battery connector, the battery tabs materials.
